Method of Accessing WeChat via Messaging Interface

I. Overview

When binding the URL and Token of other developers in the WeChat Developer Backend, if you want to simultaneously use Udesk services, you can achieve this by docking with the Udesk messaging interface through a server.

By docking with the Udesk messaging interface server, both message reception and sending go through the server. (For WeChat, special optimizations have been made. Images that comply with WeChat specifications can be directly generated by obtaining a token without the need for the server to upload to WeChat again.)

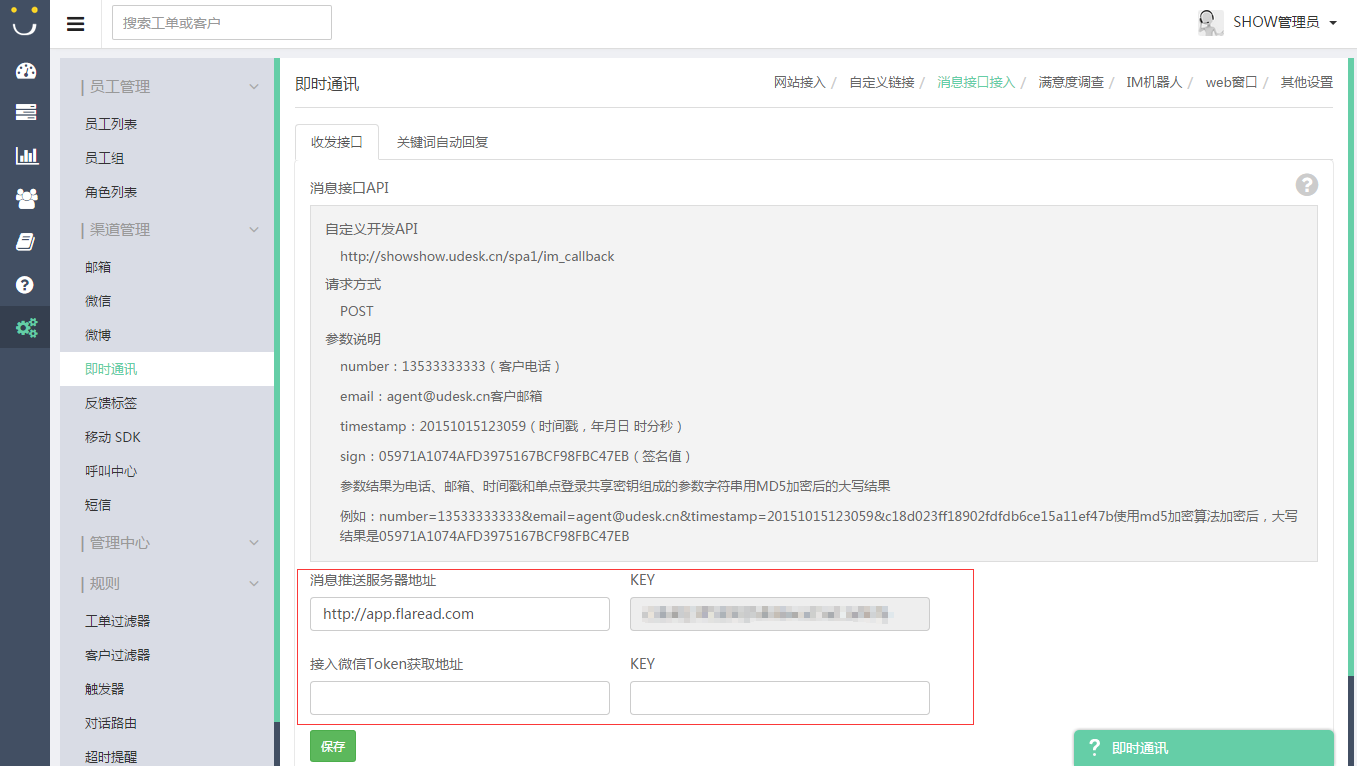

Administrators log in to the Udesk backend [Management Center - Instant Messaging - Message Interface Access]

II. Test whether the message reception channel is normal

Test whether the interface is unblocked:

curl https://xxxx.udesk.cn/spa1/im_callback/test?number=13574221234&email=894733082@qq.com&timestamp=20151124141451&sign=07131700A29AD987F5D9F0463CE7EFC7

Incoming parameters

number=13574221234&email=894733082@qq.com&timestamp=20151124141451&sign=07131700A29AD987F5D9F0463CE7EFC7

Parameter Description

Parameter Name	Description
number	Phone number
email	Email
timestamp	Timestamp
sign	Result of generating md5 based on the previous parameters

Sign Generation Method

• sign = md5(number=13574221234&email=894733082@qq.com&timestamp=20151124141451&secret).upper
• Convert to uppercase after md5
• secret: Corresponding to the "KEY" of the message push server address in [Management Center - Instant Messaging - Message Interface Access]

Return parameters

Success: { "success": true }
Failure:
{
  "success": false,
  "msg": "sign verification failed"
}

Parameter Name	Description
success	True/false, request successful/failed
msg	Result explanation in string format

III. Receiving Message Interface

Customer sends a message to customer service

1. Receiving Text Messages

Receiving Message Interface

POST http://xxxx.udesk.cn/spa1/im_callback?number=13574221234&email=894733082@qq.com&timestamp=20151124141451&sign=07131700A29AD987F5D9F0463CE7EFC7

Request Parameters (Request Body) Example

<xml>

  <FromUserName>openid</FromUserName>

  <Number>phone number</Number>

  <Email>894733082@qq.com</Email>

  <Content>this is a test</Content>

  <CreateTime>1548348776</CreateTime>

  <MsgType>text</MsgType>

  <MsgId>1548348777</MsgId>

</xml>

Parameter Description

Parameter Name	Description
FromUserName	Sender account (an OpenID)
Number	Customer mobile number or phone
Email	Customer email
Content	Message content
CreateTime	Message creation time (integer)
MsgType	text
MsgId	Message ID, 64-bit integer

2. Receiving Image Messages

Receiving Message Interface

POST http://xxxx.udesk.cn/spa1/im_callback?number=13574221234&email=894733082@qq.com&timestamp=20151124141451&sign=07131700A29AD987F5D9F0463CE7EFC7

Request Parameters (Request Body) Example

<xml>

 <FromUserName><![CDATA[fromUser]]></FromUserName>

 <Number>phone number</Number>

 <Email>894733082@qq.com</Email>

 <CreateTime>1348831860</CreateTime>

 <MsgType><![CDATA[image]]></MsgType>

 <PicUrl><![CDATA[this is a url]]></PicUrl>

 <MediaId><![CDATA[media_id]]></MediaId>

 <MsgId>1234567890123456</MsgId>

 </xml>

Parameter Description

Parameter Name	Description
FromUserName	Sender account (an OpenID)
Number	Customer mobile number or phone
Email	Customer email
CreateTime	Message creation time (integer)
MsgType	image
PicUrl	Image link
MediaId	Media ID of the image message, can be used to call the multimedia file download interface to pull data.
MsgId	Message ID, 64-bit integer

3. Receiving Voice Messages

Receiving Message Interface

POST http://xxxx.udesk.cn/spa1/im_callback?number=13574221234&email=894733082@qq.com&timestamp=20151124141451&sign=07131700A29AD987F5D9F0463CE7EFC7

Request Parameters (Request Body) Example

<xml>

 <FromUserName><![CDATA[fromUser]]></FromUserName>

 <Number>phone number</Number>

 <Email>894733082@qq.com</Email>

 <CreateTime>1357290913</CreateTime>

 <MsgType><![CDATA[voice]]></MsgType>

 <MediaId><![CDATA[media_id]]></MediaId>

 <Format><![CDATA[Format]]></Format>

 <MsgId>1234567890123456</MsgId>

</xml>

Parameter Description

Parameter Name	Description
FromUserName	Sender account (an OpenID)
Number	Customer mobile number or phone
Email	Customer email
CreateTime	Message creation time (integer)
MsgType	Voice is voice
MediaId	Media ID of the image message, can be used to call the multimedia file download interface to pull data.
Format	Voice format, amr
MsgId	Message ID, 64-bit integer

4. Response Result When Receiving Messages

Parameter Description

Parameter Name	Description
status	Customer service status, queuing/chatting/offline/unknown (queueing/chatting/offline/unknown error)
turn	Position in the queue
agent_name	Customer service name
msg	string format message

Example

{
    "status": "chatting",
    "turn": 0,
    "agent_name": "Test Customer Service 1",
    "msg": "Test Customer Service 1 is serving you!"
}
